18 Jun NEW – Netgate 6100
NEW – Netgate 6100
Available for Pre-Order in the UK Now

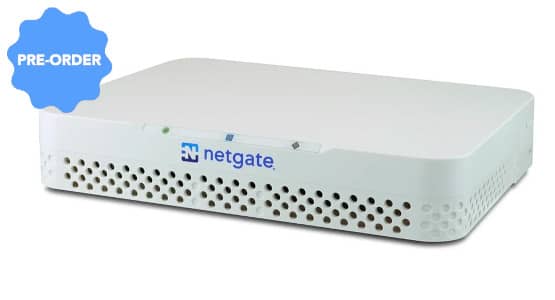

Netgate 6100
We are excited to introduce to the UK market the newest addition to the family of Netgate® security gateway appliances, the Netgate 6100 with pfSense® Plus software. The Netgate 6100 is a powerful desktop security gateway with flexibility built-in for the pro-home, small/medium business, or edge deployments that require a silent desktop form factor with 10 Gbps network connections.
This is the first Netgate product offered with 2.5 Gbps LAN ports. This newest product is a versatile and robust offering that combines the best features of the Netgate 5100 and the Netgate 7100 DT all in one package.
Highlights
- Quad-Core Intel® Atom® C3558 2.2 GHz CPU w/ QAT and AES-NI
- 8 GB DDR4 Memory
- 16 GB eMMC
- 2 x 10 Gbps SFP+ WAN ports
- 2 x 1 Gbps Auto-Detect RJ-45 / SFP Combo WAN ports
- 4 x 2.5 Gbps RJ45 “direct” (unswitched) ethernet LAN ports
- Passive, silent cooling
Compare
The Netgate 6100 compares favorably to the Netgate 5100 and the Netgate 7100 DT, at a competitive price point that will be attractive to your customers.
| Netgate 5100 | Netgate 6100 | Netgate 7100 DT | |
|---|---|---|---|
| CPU | 4 Core Intel® Atom® C3558 2.2 GHz | 4 Core Intel® Atom® C3558 2.2 GHz | 4 Core Intel® Atom® C3558 2.2 GHz |
| Memory | 4 GB DDR4 | 8 GB DDR4 | 8 GB DDR4 |
| Storage | 8 GB eMMC | 16 GB eMMC | 32 GB eMMC |
| WAN / LAN | (4) 1 Gbps Intel® SoC Integrated MAC (RJ45) (2) 1 Gbps Intel® i210 (RJ45) | (2) 10 Gbps (SFP+) (2) 1 Gbps Combo Ports (RJ45 / SFP) (4) 2.5 Gbps Intel® i225 (RJ45) | (2) 10 Gbps Intel x553 (SFP+) (8) 1 Gbps ports sharing a Marvell switch (RJ45) |
| Performance (IPERF) | – L3 Forwarding: 3.755 Gbps – Firewall: 3.754 Gbps – NAT: 3.752 Gbps – IPsec VPN: 1.92 Gbps (AES-GCM-128 w/QAT) | – L3 Forwarding: 18.755 Gbps – Firewall: 10.073 Gbps – NAT: 7.892 Gbps – IPsec VPN: 2.074 Gbps (AES-GCM-128 w/QAT) | – L3 Forwarding: 18.525 Gbit/s – Firewall: 9.849 Gbps – NAT: 9.243 Gbps – IPsec VPN: 2.01 Gbps (AES-GCM-128 w/QAT) |
| Performance (IMIX) | – L3 Forwarding: 3.83 Gbps – Firewall: 2.50 Gbps – NAT: 2.98 Gbps – IPsec VPN: 502 Mbps (AES-GCM-128 w/QAT) | – L3 Forwarding: 6.62 Gbps – Firewall: 2.67 Gbps – NAT: 3.18 Gbps – IPsec VPN: 545 Mbps (AES-GCM-128 w/QAT) | – L3 Forwarding: 6.24 Gbps – Firewall: 2.77 Gbps – NAT: 3.15 Gbps – IPsec VPN: 522 Mbps (AES-GCM-128 w/QAT) |
As a point of reference, the advantage of the Netgate 5100 is discrete, unswitched 1 Gbps ports, but it lacks the 10 Gbps capability of the Netgate 6100. The advantage of the Netgate 7100 is 10 Gbps capability, but the LAN ports are limited to a total of 2.5 Gbps throughput across the 8 switched ports.
The Netgate 6100 provides maximum flexibility for both 1 and 10 Gbps WAN capabilities across RJ45, SFP, and SFP+ ports, as well as 4 discrete, unswitched 2.5 Gbps LAN ports.
The Netgate 6100 features 16 GB eMMC. There will also be an optional storage upgrade version, the Netgate 6100 Max featuring 128 GB eMMC. There is a wall mount option available.
