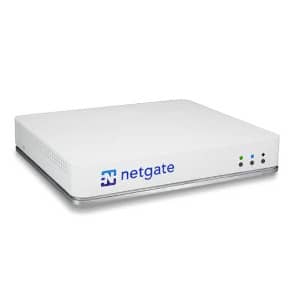

Netgate 3100

The Netgate® 3100 security gateway appliance with pfSense® Plus software is the perfect multi-port Ethernet connectivity device for the modern home, small office, and SMB network. With a compact form factor, low power draw, and silent operation it can run completely unnoticed placed on a desktop. Featuring a Dual-core ARM Cortex-A9 1.6 GHz CPU, (6) 1 GbE ports, and 2 GB of DDR4 RAM – the Netgate 3100 can deliver multi-gigabit firewall and routing throughput.

The Netgate 3100 is a high-performance gigabit desktop appliance as a result of its Dual core ARM v7 Cortex-A9 @ 1.6 GHz, 2 GB of DDR4 RAM, and flexible 6-port network interface.

BASE

Memory 2GB

Storage 8GB

MAX

Memory 2GB

Storage 32GB

SHOP

CPU: The Dual core ARM v8 Cortex-A53 1.2 GHz delivers 3.64 Gbps routing for common iPerf3 traffic and over 2.44 Gbps of firewall throughput.

Network Ports: Flexible 6-port combination of (1) 4-port 1 GbE Marvell switch and (2) dedicated 1 GbE ports.

Storage: 8 GB eMMC Flash onboard (or optional 32 GB M.2 SATA SSD)

Memory: 2 GB DDR4, DDR4 memory allows more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).

Cooling: The passive cooling system and low power draw of the Netgate 3100 provides efficient thermal management and silent operation expected from smaller devices despite its significantly higher performance.

HARDWARE SPECIFICATION

CPU	ARM v7 Cortex-A9 @ 1.6 GHz with NEON SIMD and FPU
CPU Cores	Dual Core
Networking	Two 1 Gigabit Ethernet Ports, configured as dual WAN or one WAN one LAN plus four-port 1 Gbps Marvell 88E6141 switch, uplinked at 2.5 Gbps to the third port on the SoC for LAN.
Storage	8 GB eMMC Flash onboard, upgradable to 32 GB M.2 SATA SSD with SG-3100 Max
Memory	2 GB DDR4L
Expansion	2x M.2 ‘B’ key sockets (SSD, LTE) 1x M.2 ‘E’ key socket (2230 form factor) for WiFi / Bluetooth 1x miniPCIe (WiFi) microSIM
Console Port	MiniUSB (console cable included)
USB Ports	1x 3.0 port
LED	3 user-controllable full-color RGB LEDs
Enclosure	Desktop 1.56″ tall x 7″ deep x 8″ wide
Form Factor	Standard mini-ITX 170mm x 170mm
Cooling	Passive
Power	External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 3.33A, threaded barrel connector AC Inlet: IEC320-C14 (3 PIN) One US, UK, EU or ANZ power cord included US Power Cord: NEMA 5-15P to IEC320-C13 UK Power Cord: BS 1363 to IEC320-C13 EU Power Cord: CEE7/16 to IEC320-C13 ANZ Power Cord: AS 3112 to IEC320-C13
Environmental	32°F (0°C) to 149°F (65°C)
Certifications	FCC, CE, RoHS, UL, IEC-60950

All specifications subject to change without notice

Highlights

L3 Forwarding

IPERF3 Traffic: 3.64 Gbps
IMIX Traffic: 1.98 Gbps

Firewall

(10k ACLs)

IPERF3 Traffic: 2.44 Gbps
IMIX Traffic: 1.04 Gbps

IPsec VPN

(AES-CBC-128 + SHA1)

IPERF3 Traffic: 453 Mbps
IMIX Traffic: 108 Mbps

Netgate 3100 performance tests conducted with pfSense software version 2.4.4-p3

The Netgate 6100 features 16 GB eMMC. There is also an optional storage upgrade version, the Netgate 6100 Max featuring 128 GB eMMC. There is a wall mount option available.

Product Features

LOW TOTAL COST OF OWNERSHIP

No artificial limits or add-ons required to make your system fully functional.
No additional usage or feature-based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
Low power requirements to help save you money.
No moving parts to wear out. This system is designed for a long deployment lifetime.

GROWS WITH YOU

From firewall to Unified Threat Management, get all the security features you need to protect your home or business.
Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
Add optional packages such as Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery and SquidGuard for anti-spam/anti-phishing and URL filtering.1
Maximum Active Connections: 1.8 million

EASY GUI MANAGEMENT

Manage pfSense Plus settings through our web-based GUI.
No fumbling with a command line interface or typing arcane commands.

SECURE REMOTE ACCESS

Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect security, or connect to the Cloud!
Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud.

Best For:

Consumers
Remote Workers
Small to Medium-Sized Business Networks
Small to Medium-Sized Branch Office
Managed Service Provider / Managed Security Service Provider (MSP/MSSP) On-Premises Appliance

Software Features

pfSense Plus software is a powerful firewall, router and VPN solution that leverages a number of highly-regarded open-source projects. The software competes effectively with far more expensive, commercial alternatives and is used by hundreds of thousands of businesses, educational institutions, and government agencies all over the world. Leading secure-networking features and capabilities include:
