Netgate 8200

If you need high-throughput firewall, routing, and VPN performance, look no further. The Netgate® 8200 with pfSense® Plus software is the fastest Intel® Atom®-based firewall we offer, in a whisper-quiet rack mount configuration. It is ideal for remote offices, edge deployments, managed service providers, and enterprise networks.

Netgate 8200 Front

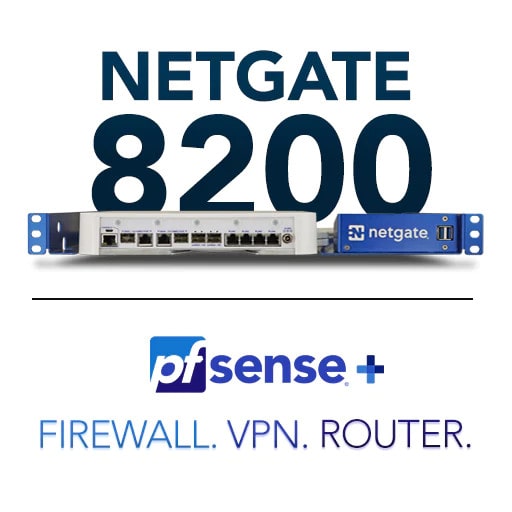

Netgate 8200 with pfSense plus
Netgate 8200 Performance
Netgate 8200 Specifications

Double the cores, double the memory, double the power.



Combining the power of an 8-Core Intel Atom C3758R CPU with integrated QuickAssist & AES-NI along with 16 GB of memory, the Netgate 8200 provides:

  • Over 80% greater firewall and VPN throughput than the Netgate 6100
  • Double the firewall performance and over 70% more VPN throughput than the outgoing Netgate 7100*

Hardware Specification

CPUIntel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)
Physical Network I/O ports(2) 10 Gbps SFP+ WAN ports
(2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports
(4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet (LAN) Intel i226 ports
Storage128 GB NVMe M.2 SSD (B+M Key)
Memory16 GB DDR4 w/o ECC, single channel (soldered down)
Physical Expansion Card Slots2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)
1x Mini-PCie Slot (Wi-Fi Only)
Console Port1 x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)
USB Ports2x USB 3.0 jacks (USB-A female) Located on right side rear / lead out to right side front panel of 1U rack
LED3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
Enclosure1U Rack – Aluminum, plastic, and steel enclosure.

19 x 10 x 1.75 inches
482.6 x 254 x 44.45 mm

CoolingActive – integrated quiet chassis fan with onboard control
PowerExternal ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

– AC Inlet: IEC320-C7 (2 PIN) – Power Cord: One US, UK, EU or ANZ power cord included

– US Power Cord: NEMA 1-15-P to IEC320-C7
– UK Power Cord: BS 1363 to IEC320-C7
– EU Power Cord: CEE7/16 to IEC320-C7
– ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

Environmental0°C (32°F) to 40°C (104°F) – ambient
CertificationsFCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA

All specifications subject to change without notice.

Highlights

L3 Forwarding

  • IPERF3 Traffic: 18.60 Gbps
  • IMIX Traffic: 11.76 Gbps

Firewall

(10k ACLs)

  • IPERF3 Traffic: 18.55 Gbps
  • IMIX Traffic: 5.1 Gbps

IPsec VPN

(AES-GCM-128 w/QAT)

  • IPERF3 Traffic: 3.24 Gbps
  • IMIX Traffic: 810 Mbps

Netgate 8200 performance tests conducted with pfSense Plus software version 22.05

Netgate 8200 Front
Netgate 8200 Bottom
Netgate 8200 Rear Angle
Netgate 8200 Top

Key Features

AFFORDABLE RELIABILITY

Experience the performance and business assurance expected from leading secure networking applications at a fraction of the cost of proprietary alternatives. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc. with no artificial limits and no additional usage or feature-based pricing.



SIMPLE MANAGEMENT

Manage pfSense Plus software settings through our web-based GUI. No need to fumble with a command line interface or type commands.



FLEXIBLE CONFIGURATION

From Firewall to Unified Threat Management, get all the security features you need to protect your network.



POWER EFFICIENT & QUIET

An actively controlled cooling fan integrated into the chassis baseplate allows the unit to remain uncharacteristically quiet for such a powerful 1U system and the Intel Atom processors are designed for low power consumption.

Software Features

  • Ships with the latest version of pfSense Plus software
  • Not PoE Compatible
  • Ships with your choice of Australian, UK, EU or USA cords. Easily changed by purchasing compatible AC power cord with IEC320-C7 (2 PIN) plug (visual example)
  • Netgate 8200 systems are actively cooled. Take care to avoid any obstructions to the chassis and lid venting.
  • Netgate 8200 systems may be rack mounted with other devices directly above or below the Netgate system. Heat sources placed immediately below or in direct contact with the underside (chassis) of the 8200 system should measure less than 40°C / 104°F surface temperature.

Your purchase includes all of these super neat things, which will help you get started with pfSense Plus software:

  • Complimentary TAC Lite 24×7 zero-to-ping support from Netgate Global Support
  • Access to the online version of the continuously updated official pfSense book (700+ pages)
  • ACB: Automatic Encrypted Configuration Backup Service
